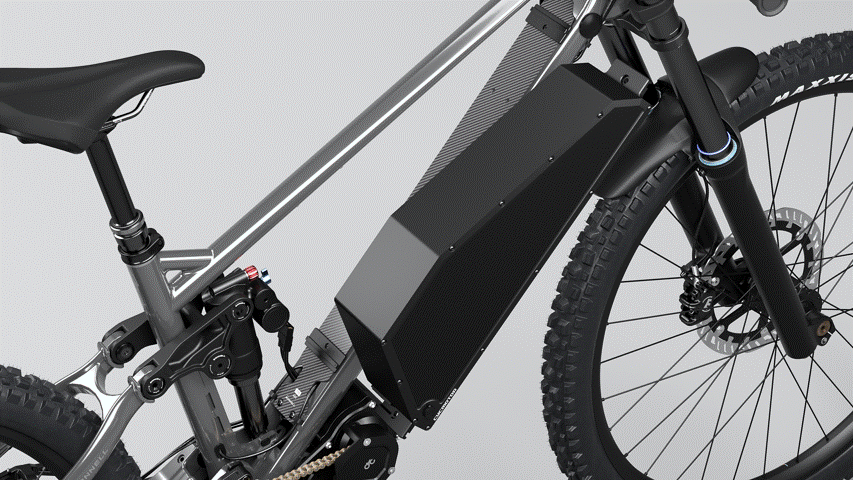

Optimized to bring out the motor’s full potential, the A65-series battery offers the versatility to prioritize either maximum power or maximum range, adapting to your riding style. Built for endurance, the A65 series provides unmatched performance, making it the ideal choice for those who love to explore without limit.

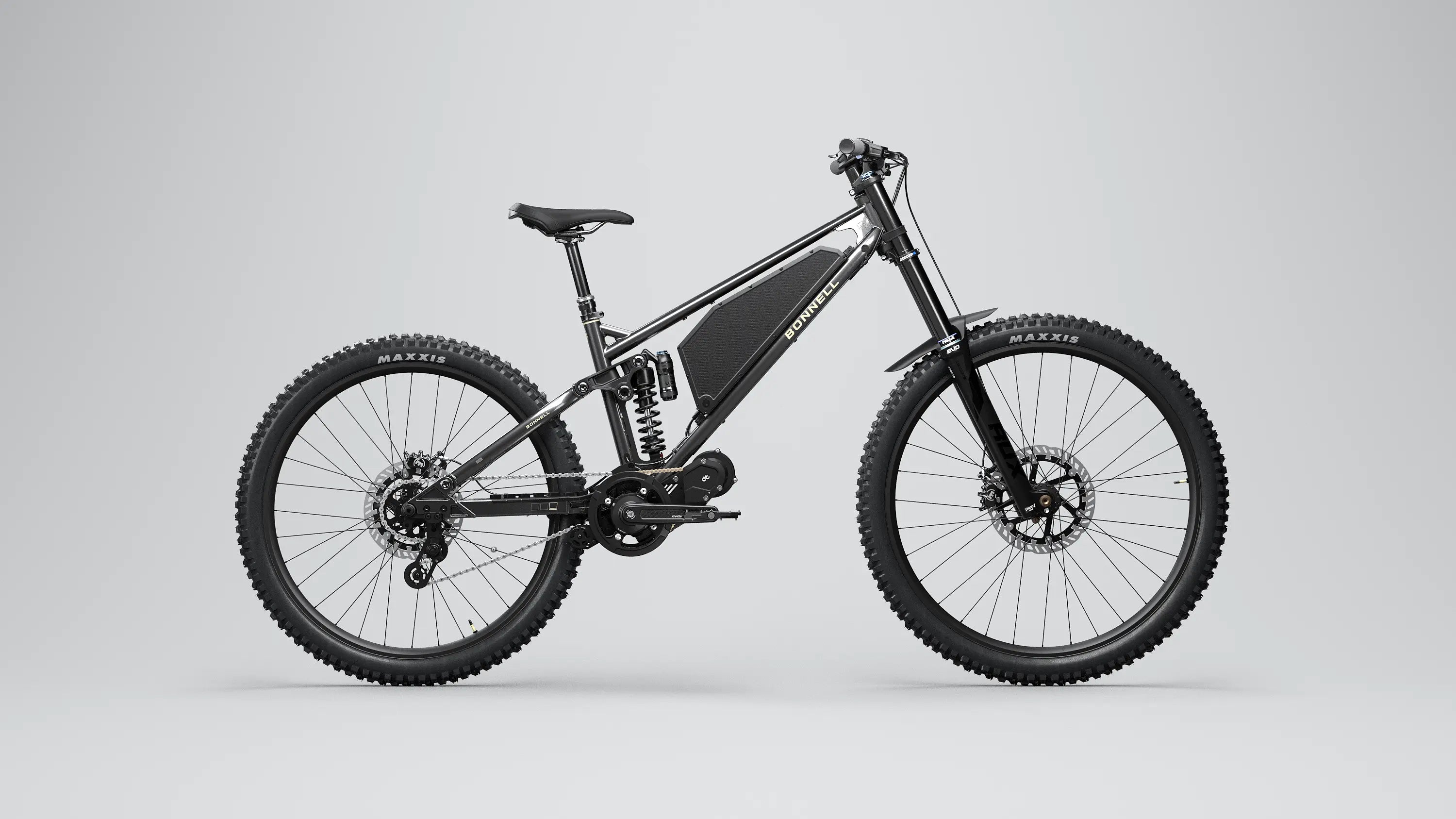

The 775 MX boasts a rugged 4130 chromoly front triangle with an anti-rust ED coating for lasting durability, complemented by 6061 forged aluminum chainstays, adjustable dropouts, and sealed bearings that deliver smooth, reliable performance on tough trails. Paired with the Suntour Rux 38 RC+ fork and Suntour Voro Coil, this setup provides pro-level ride quality, with custom tuning that elevates both comfort and control—ready to adapt to any challenge.

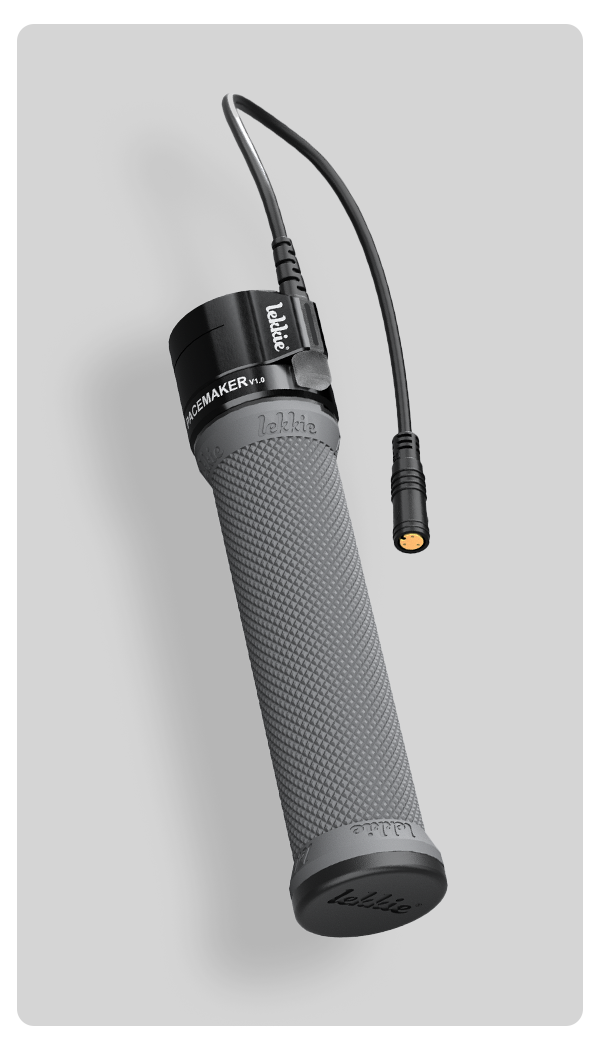

Lekkie Pacemaker Twist Throttle + Grips

Crafted with a soft rubber compound, these grips are designed to maximize rider comfort and ensure a secure grip in any conditions. Engineered to withstand impacts and drops, each grip features a full plastic end cap to protect the throttle and maintain functionality, even after intense rides. The durable lock-on design makes for quick replacements, while the low-profile, sleek construction offers a streamlined feel and a confident hold on every trail.

Here's a cleaner Shopify-ready product description using headings and bullet points for readability. You can paste this directly into the Shopify description editor (or switch to HTML later if you want icons or collapsible tabs).

Bonnell 775 MX Specifications

Frame

• Platform: Progressive single-pivot, linkage-driven suspension

• Rear Travel: 170mm

• Front Triangle: 4130 chromoly with twin downtube design, fully ED-coated

• Chainstay: 6061 aluminum with forged yoke and adjustable forged dropouts

• Seatstays: 6061 aluminum with removable bridge and forged bearing eyelets

• Rocker Arm: Forged aluminum

• Brake Mount: 203mm Post Mount

• Derailleur Hanger: UDH

• Bearings: Full complement stainless sealed bearings with marine grease

• Pivot Sealing: Dual-sealed suspension pivots

• Dual Crown Rating: Up to 615mm axle-to-crown

• Finish: Durable powder-coated finish

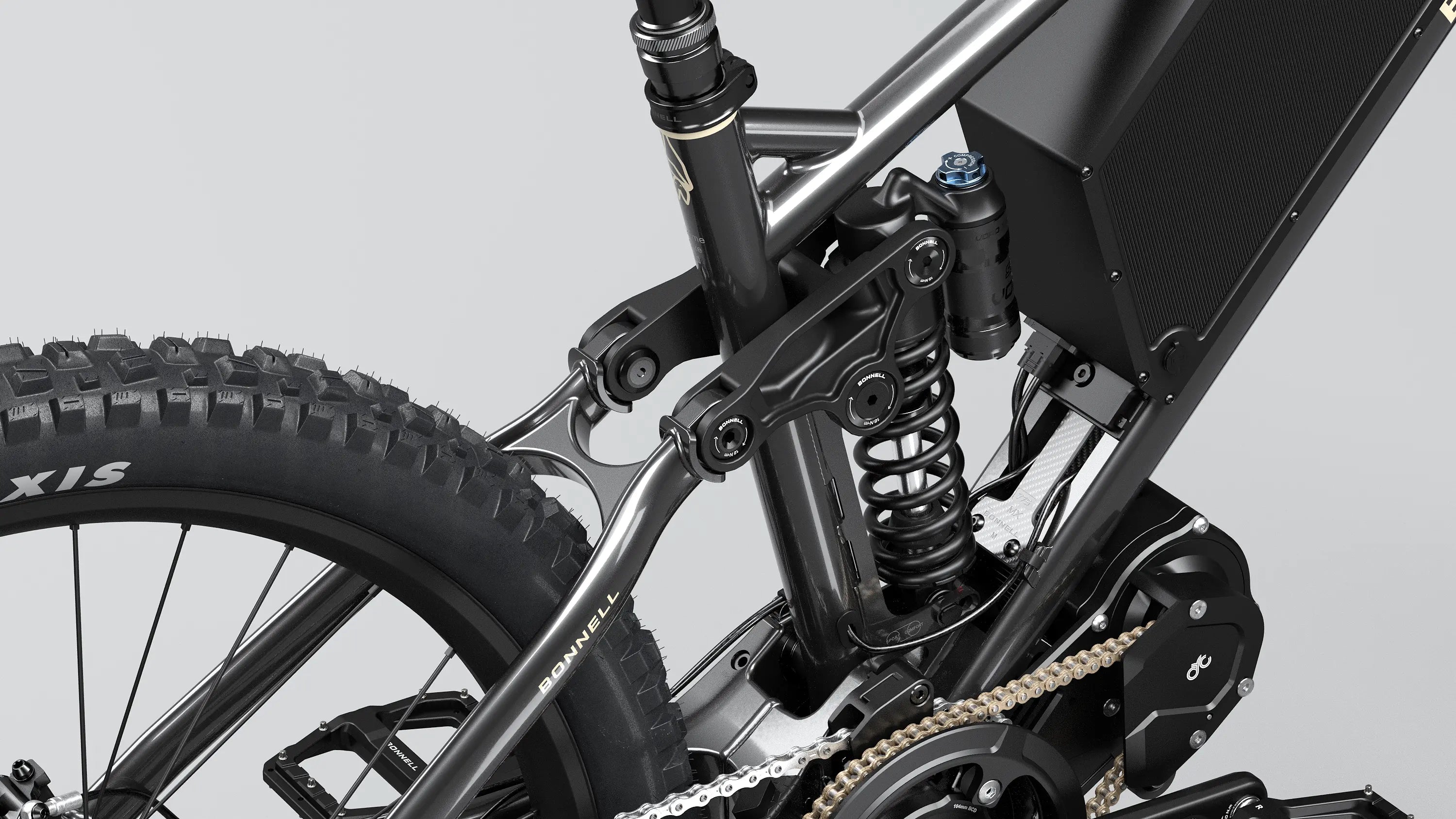

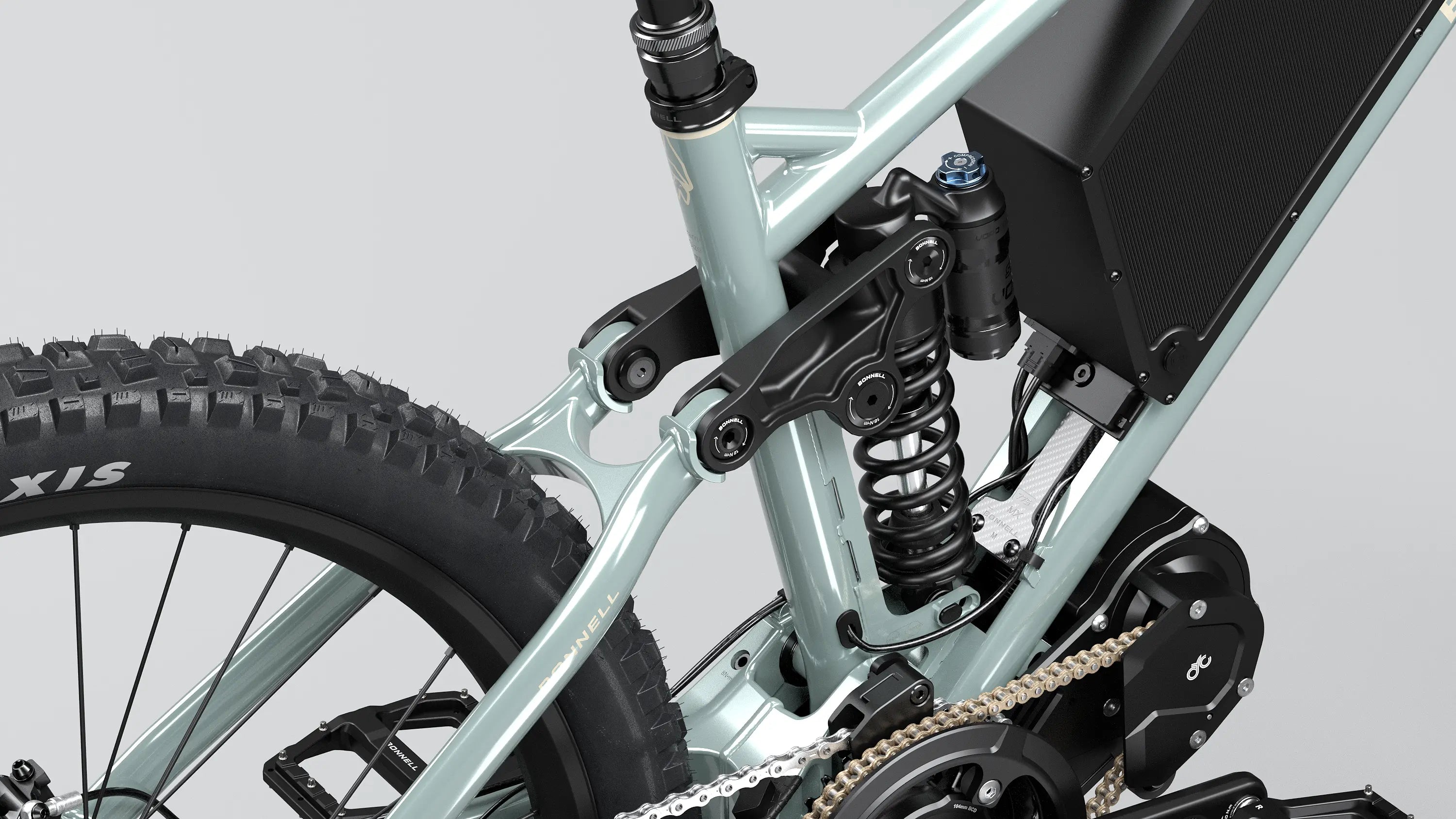

Rear Suspension

Shock: Suntour Voro Coil (Trunnion)

• Shock Size: 205 x 65mm

• Compression: 5-position low-speed adjustment

• Rebound: External rebound adjustment

Fork

Suntour Rux 38 RC+

• Travel: 200mm

• Wheel Size: 29"

• Steerer: Tapered 1 1/8"–1.5"

• Offset: 50mm

• Axle: Boost 20 x 110mm thru-axle

• Includes integrated short fender

Headset

• Tapered ZS44 / ZS56

• Sealed bearings

E-System

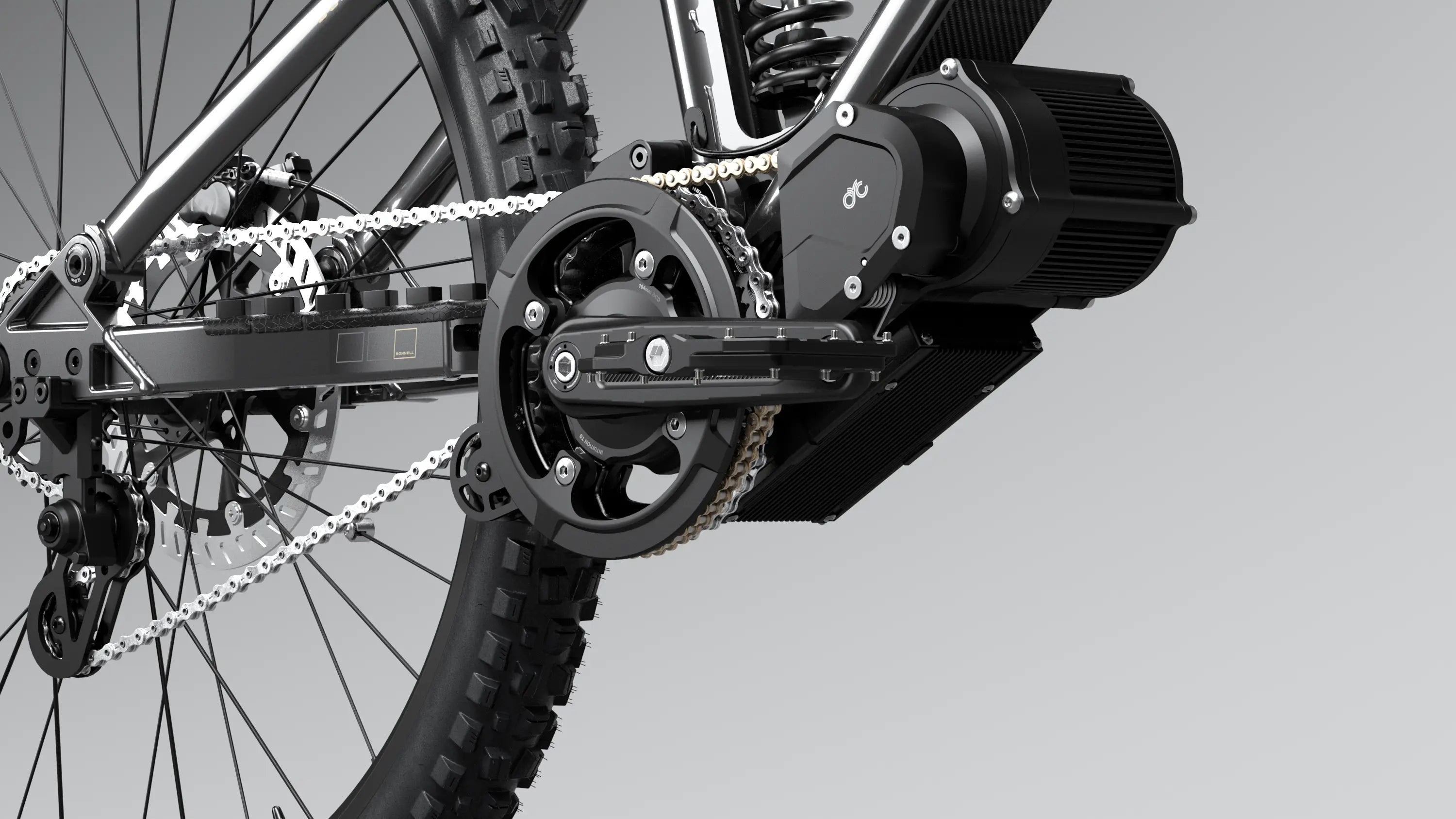

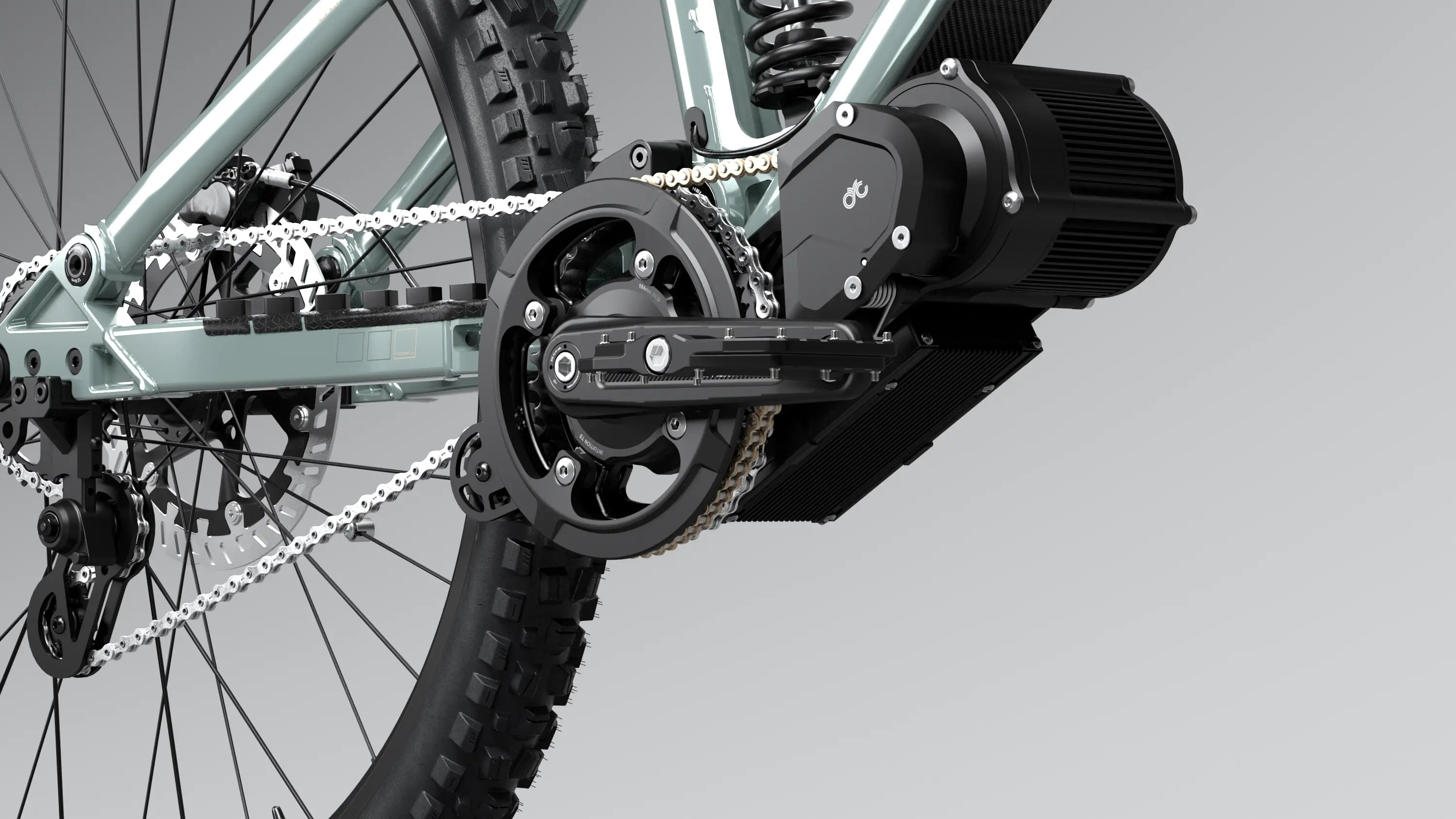

Motor

• Drive Unit: CYC X1 Pro

Battery

• CYC A65 Series

• Capacity: 1300Wh

• Weight: Approx. 17 lb (7.6kg)

Electronics

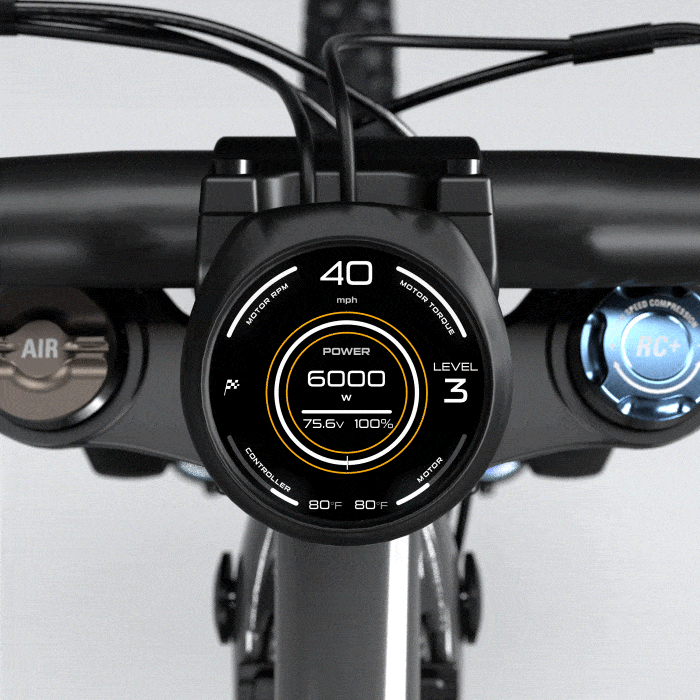

• Display: CYC Intuition Smart Display

• Charger: CYC 5A Fast Charger

• Throttle: Lekkie Pacemaker Full-Twist

Drivetrain

• Chainring: CYC Steel Narrow-Wide 38T

• Bashguard: CYC 6061-T6 Heavy Duty Aluminum

Drivetrain

• Rear Sprocket: 24T Hardened Steel Narrow-Wide

• Chain: KMC e1 EPT Anti-Rust

• Chain Tensioner: Bonnell CNC UDH Mount (22T–28T compatible)

• Chainguide: Bonnell Upper Guide + Bottom Roller (32T–38T compatible)

• Cranks: CYC Forged 155mm

Brakes

Magura MT5

• 4-Piston Hydraulic Disc Brakes

• Front Rotor: 220mm MDR-P Floating

• Rear Rotor: 203mm MDR-P Floating

• Moto-style brake setup

• Lightweight 2-finger aluminum levers

• Standard or moto-style lever positioning

Frame Adjustments

• Adjustable Chainstay Length

  • 440mm

  • 452mm

• Two Shock Positions

  • Comfort Mode

  • Sport Mode

Wheels & Tires

Front Wheel

• Alexrims Boost Hub

• 20 x 110mm

• 36H

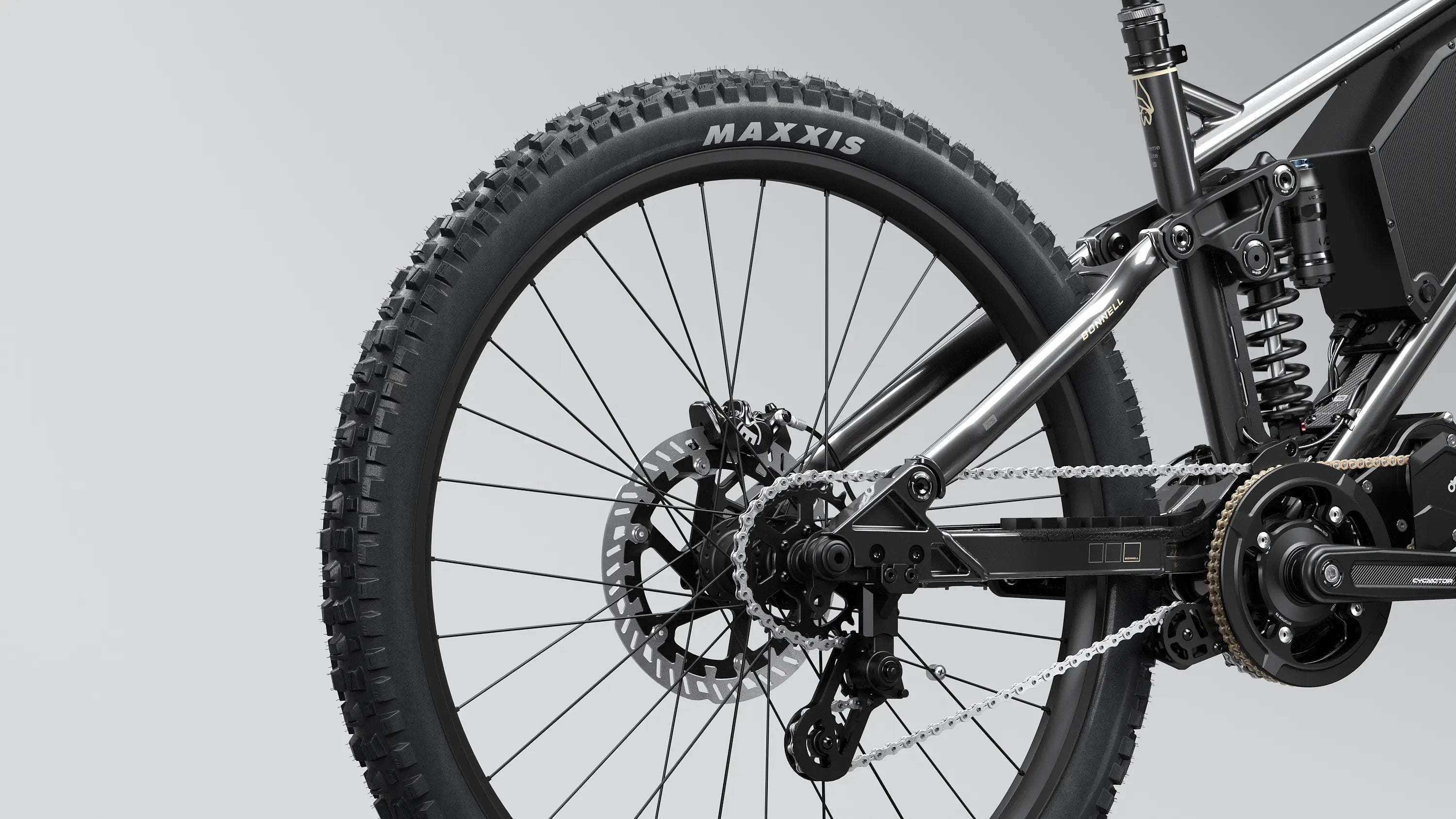

Rear Wheel

• Bonnell Single-Speed Sprag Clutch Hub

• Boost 12 x 148mm

• 36H

• Symmetrical spoke flange design

• 6-bolt sprocket mount

Rims

• Alexrims EMC30

• E-bike reinforced

• Tubeless Ready

• 30mm Internal Width

• 36 Hole

Rear Wheel Upgrades

• Heavy-duty 13G stainless spokes

• Upgraded nipples

• Reinforced lacing pattern

Tires

Front

• Maxxis Assegai DH

• MaxxGrip

• Tubeless Ready

• 29 x 2.5"

Rear

• Maxxis Assegai DH

• MaxxGrip

• Tubeless Ready

• 27.5 x 2.5"

Tubes

• Maxxis Welter Weight

Rear Insert

• Tannus Armour pre-installed for flat resistance and rim protection

Cockpit

Handlebar

• Bonnell

• 780mm Width

• 50mm Rise

• 31.8mm Clamp

• 9° Backsweep

Stem

• Kalloy Forged Direct Mount

• 44mm Length

• 31.8mm Clamp

Grips

• Lekkie Lock-On Grip

• Full-Twist Throttle

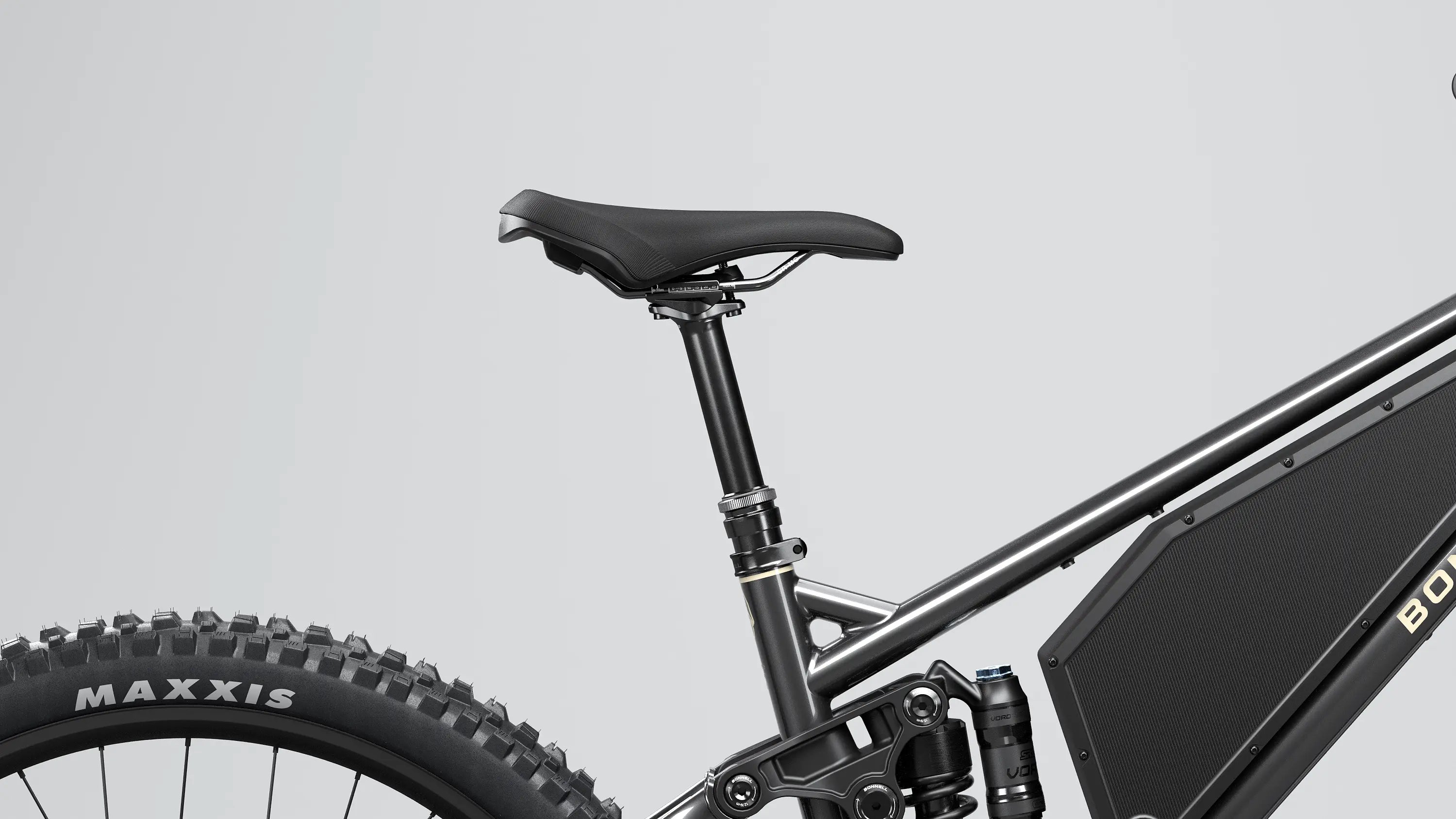

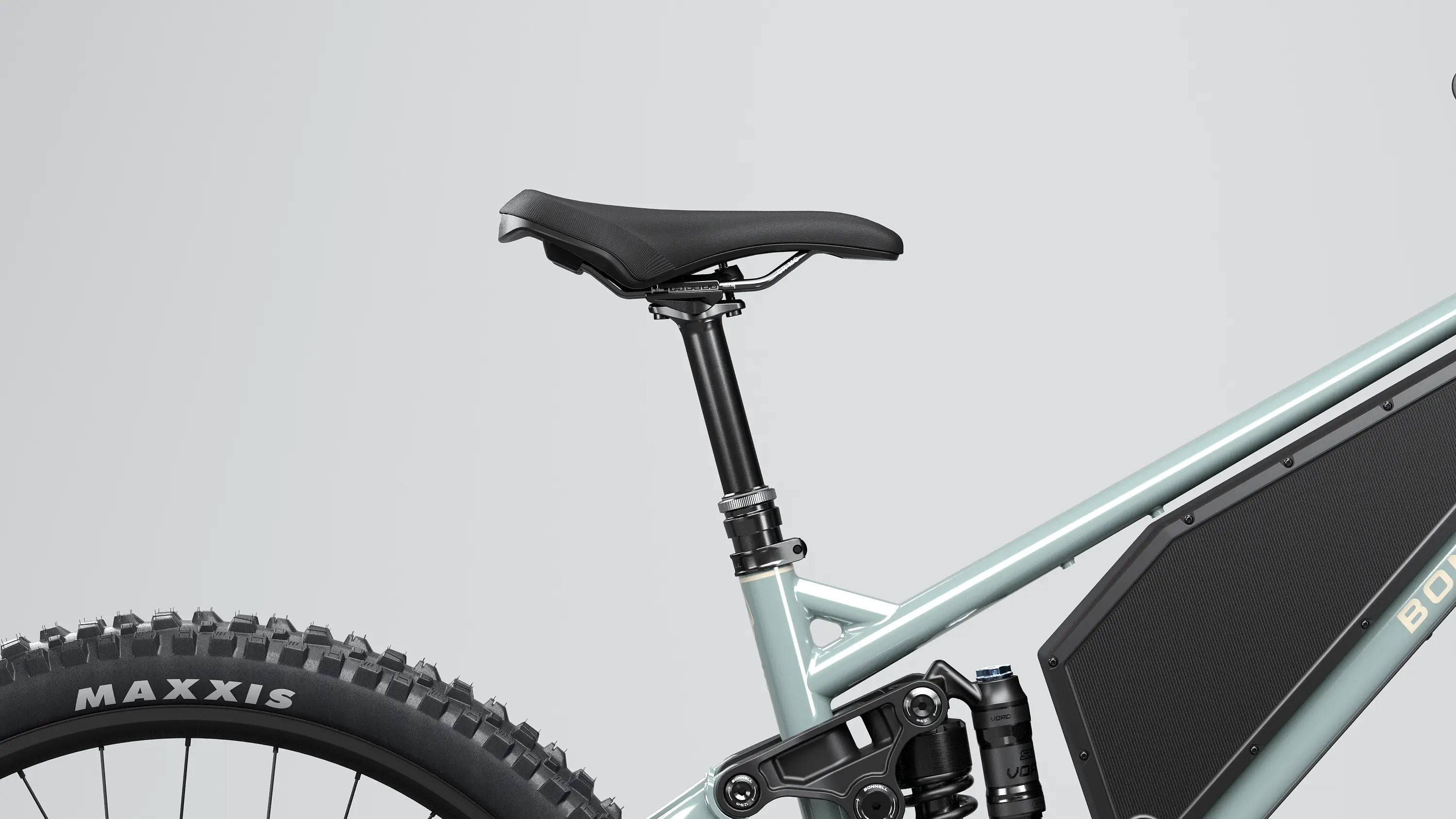

Saddle

• Bonnell by Velo

• Short Nose

• Reinforced Sides

• Chromoly Rails

• Integrated Carry Handle

Seatpost

• Tranz-X Dropper

• 30.9mm

• 2-Bolt Clamp

• Hard Anodized 7075 Aluminum

Travel:

• Medium: 140–170mm

• Large / XL: 170–200mm

Seatpost Lever

• Tranz-X GL 1x

Seat Clamp

• Bonnell 34.9mm

Connectivity

• CYC Bluetooth Speed Sensor

Included Accessories

• Bonnell Aluminum Flat Pedals

• Two Tubeless Valves

• Bonnell 13-Function Multi-Tool

• Shock Pump

• Battery

• Charger

Geometry

What's Included

• Bonnell 775 MX E-MTB

• 1300Wh Battery

• 5A Charger

• Multi-Tool Kit

• Shock Pump

• Minimal assembly required
