WP Suspension

0791L101U400220 + 91410124

WP 2021+ AER Single Spring Conversion -KTM/GasGas

WP 2021+ AER Single Spring Conversion -KTM/GasGas

**SEE BELOW FOR SPRING RATE CHART**

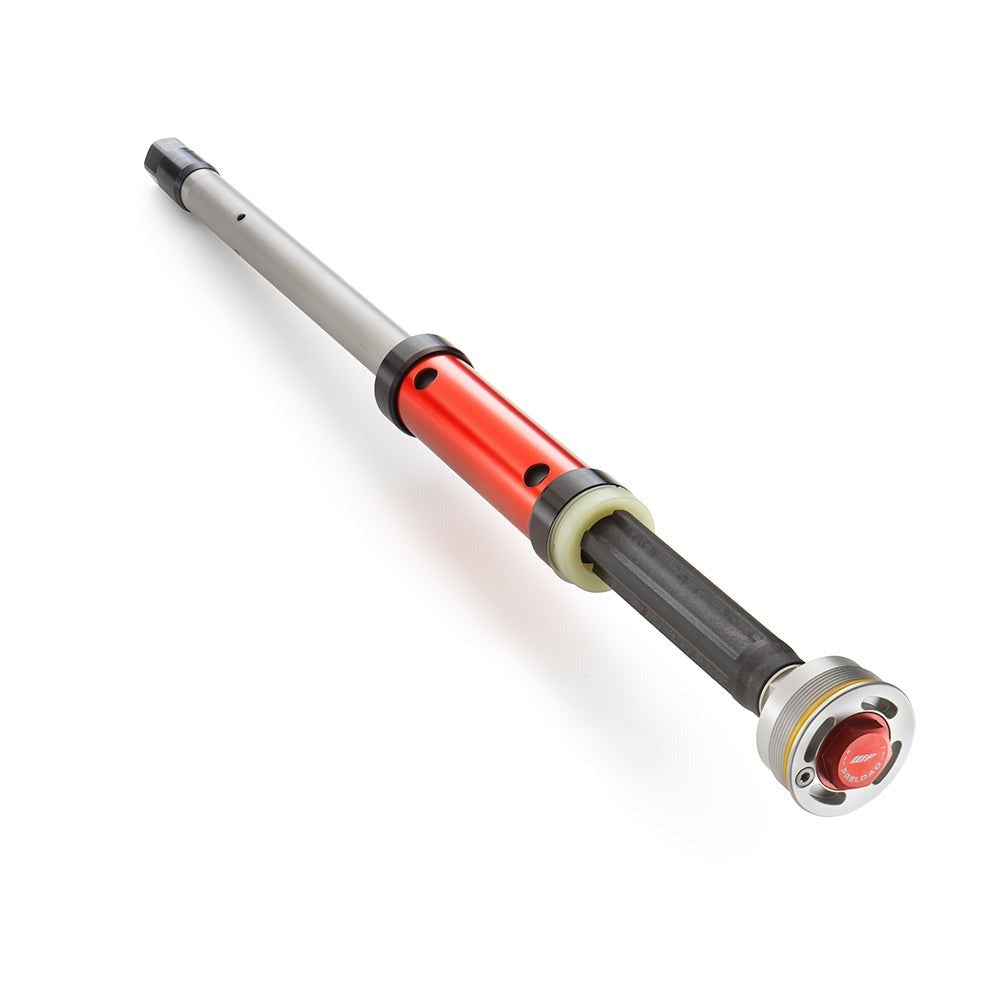

During the development of the WP AER 48, WP benchmarked the AER system with conventional systems, which use spiral springs. Both systems showed different advantages, which were each favored by different riders. In order to provide both options, WP has decided to also provide a retrofitting kit, which simply allows rebuilding the AER 48 technology into a conventional system. With this kit, the AER 48 air cartridge on the air fork leg is replaced with a spring cartridge kit. All functionalities remain at the same level, with the feeling and functionality of the conventional system. The damping side remains unchanged.

// BENEFITS

  • Same performance as the air spring fork, but uses conventional coil spring system
  • Latest technology paired with traditional concept
  • High-quality original WP PRO COMPONENTS product
  • Adjustable preload

Spring Rate Significance

We have included spring rates to choose from with this product. To capture the true technology of this spring conversion system, a proper spring rate for your weight needs to be provided. See the chart below to determine the spring rate you need according to your bike. Have any questions? Please CONTACT US HERE and we can get you sorted out!

MC/SX 125/150

Year Bike Model Rider Weight With Gear (lbs) Spring Rate
2021+ MC/SX 125/150
121-143 8.4 N/MM


143-165 8.8 N/MM


165-187 9.2 N/MM


187-209 9.6 N/MM

209-232 10.0 N/MM





MC/SX/EXF 250/250F

Year Bike Model Rider Weight With Gear (lbs) Spring Rate
2021+ MC/SX/EXCF 250/250F
121-143 9.2 N/MM


143-165 9.6 N/MM


165-187 10.0 N/MM


187-209 10.4 N/MM

209-232 10.8 N/MM





MCF/SXF/EXF 350

Year Bike Model Rider Weight With Gear (lbs) Spring Rate
2021+ MCF/SXF/EXCF 350
121-143 9.6 N/MM


143-165 10.0 N/MM


165-187 10.4 N/MM


187-209 10.8 N/MM

209-232 11.2 N/MM





MCF/SXF/EXF 450

Year Bike Model Rider Weight With Gear (lbs) Spring Rate
2021+ MCF/SXF/EXF 450
121-143 10.4 N/MM


143-165 10.8 N/MM


165-187 11.2 N/MM


187-209 11.6 N/MM

209-232
